SAMHWA Solar

SAMHWA Solar's Grid Connected Photo Voltaic Power Conditioning System


SAMHWA Solar provides User friendly inverters for grid connected applications

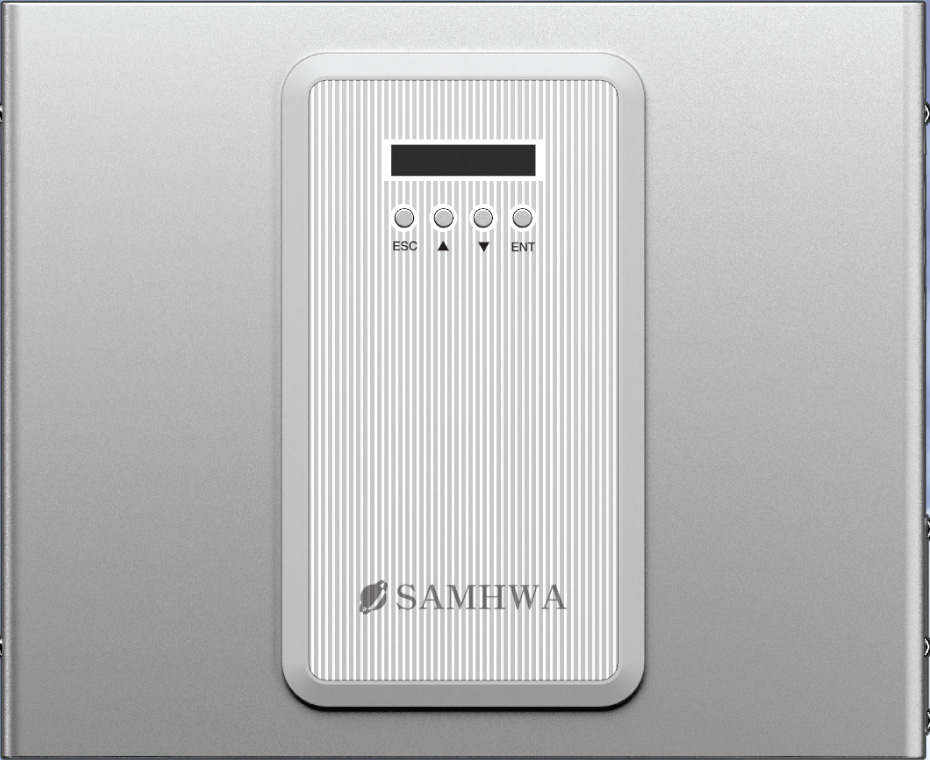

        Grid Connected PV PCS 3kw indoor type

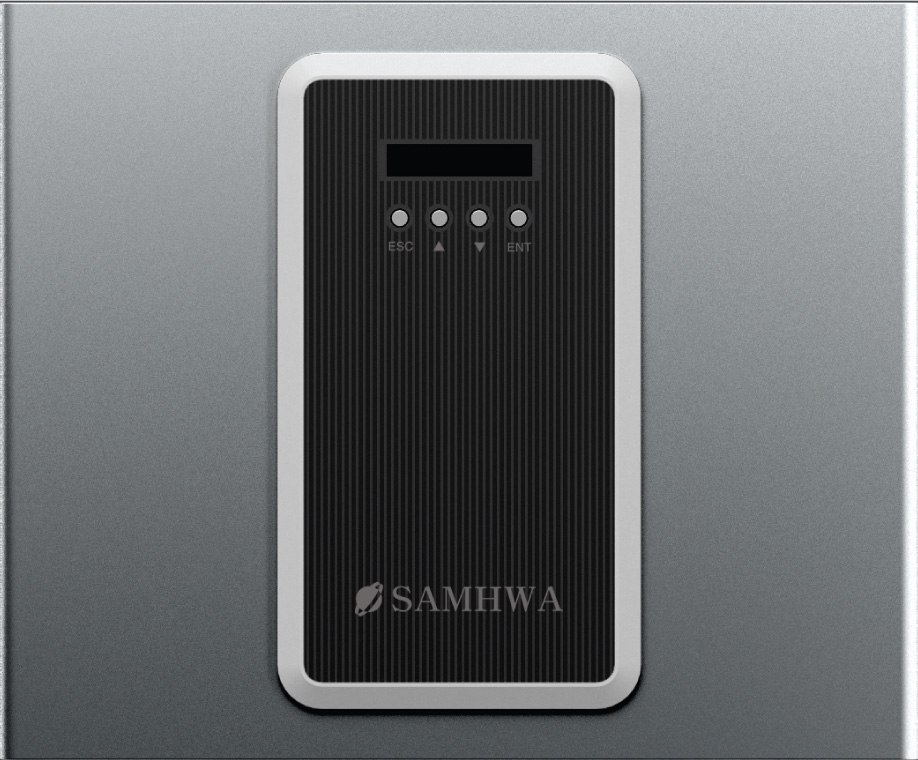

        Grid Connected PV PCS 3kw outdoor type

SAMHWA Solar's Grid Connected PV PSC

Model SH-SI 030 (indoor) SH-SO 030 (outdoor)
PV Array Interface
Max PV Power 3300 [WP] 3300 [WP]
Max Input Voltage 450 [VDC] 450 [VDC]
MPPT Voltage Range 150 ~ 450 [VDC]
Max Available Input Current 20 [ADC] 20 [ADC]
AC Line Interface
Max Continuous Power 3 [kW] 3 [kW]
Max Efficiency 96%
Nominal Line Frequency 50 /60 [Hz]
Min/Max Line Frequency 59.4 / 60.5 [Hz]
Nominal Line Voltage 220 [Vrms], 1 phase
Min/Max Line Voltage 198 / 242 [Vrms]
Nominal Line Current 15 [Arms]
Power Factor > 0.99
AC Current THD < 5% Total, < 3% Individual
Operating Interface
Input Device LCD / Button Type
Display Parameters  - AC Line Voltage
 - AC Output Current
 - PV Voltage - PV Current
 - Fault Codes
 - kWh, kW
 - Inverter Status
Protections
 - AC Line Over/Under Voltage
 - AC Line AC Over Current
 - DC Over/Under Voltage
 - AC Line Over/Under Frequency
 - Inverter Over Temperature
 - Active Anti - Islanding Protection
 - AC Line Fail
Environmental
Operating Temperature 0 To +45 กษ
Relative humidity 95 % non - condensing
Altitude Max 1000m
Cooling Conditional Forced Air Cooling (Temp. checking)
Dimensions( W * D * H)[ mm] 415 * 190 * 340 430 * 190 * 340
Weight 20 kg 22 kg
